Z-Type Bucket Elevator-Henan Keming Machinery Equipment Co., Ltd.

💡 Core Advantages & Condition Adaptability

Low Breakage Rate

Utilizes feeding-by-flow and discharge-by-induction. Materials experience almost no squeezing or collision during the lifting process, resulting in an extremely low damage rate. It is ideal for situations requiring "soft handling.

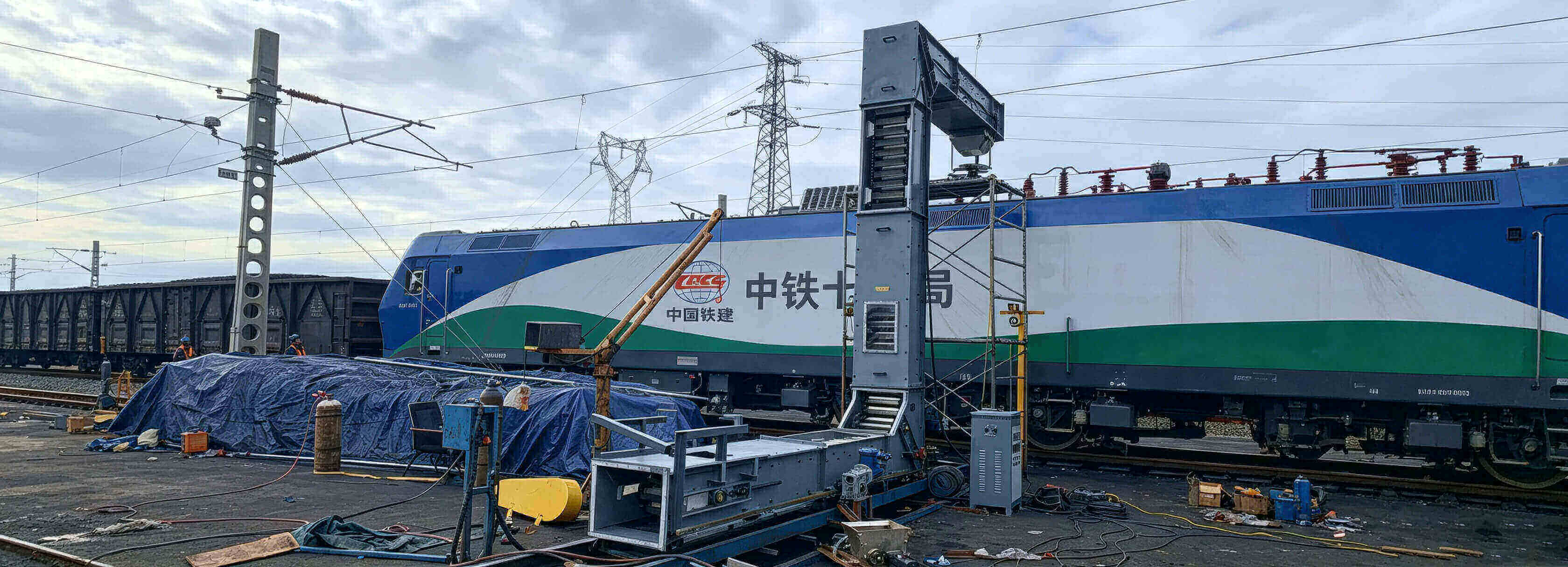

Z-shaped-Powder-Conveyor-Elevator

Eco-friendly & Pollution-free

The fully enclosed body design effectively suppresses dust diffusion, preventing leakage and flying dust, which meets environmental and hygiene requirements.

Flexible Layout

A single machine can replace the traditional combination of "horizontal conveying + lifting + horizontal conveying," saving factory space while supporting single-point or multi-point feeding/discharge.

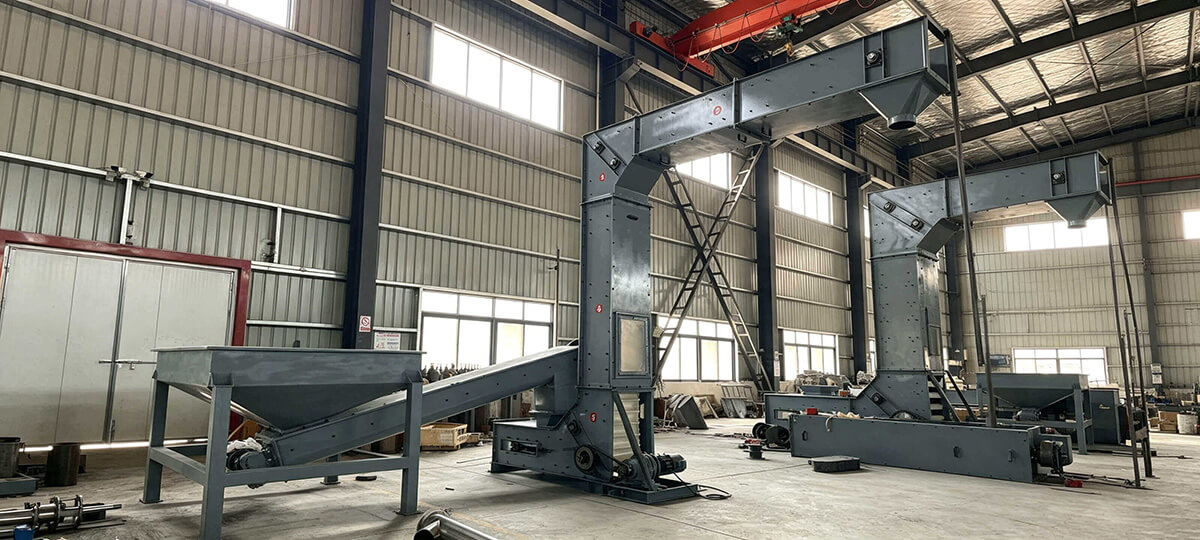

Z-Type Bucket Elevator

Model	YDZD-2L	YDZD-3L	YDZD-5L	YDZD-7L	YDZD-10L
conveying capacity （m³/h）	0-6	0-0.75	0-12	0-15	0-20
running speed （m/min）	9-11	9-11	9-11	9-11	9-11
Single bucket capacity	2L	3L	5L	7L	10L
increase height	Customize	Customize	Customize	Customize	Customize
Material of hopper	Customize	Customize	Customize	Customize	Customize

🏭 Applicable Industries
This equipment is widely used in automated production lines that require gentle handling, damage prevention, and contamination control. It mainly covers the following industries:

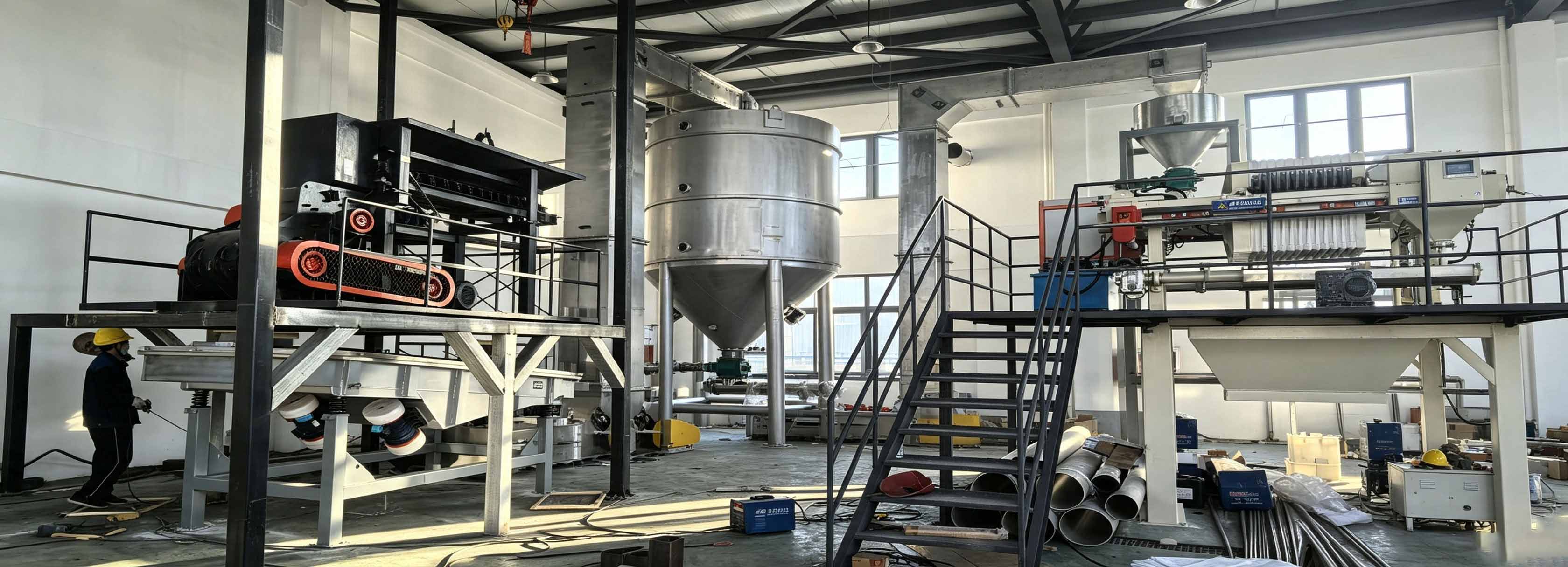

Z-bucket-lift-for-powder-materials

Food & Agricultural Products

Pet food, puffed food, snacks, candy, dried and fresh fruits, health supplements, and fine grain processing.

Chemical &amp

Pharmaceutical: Chemical products, pharmaceutical intermediates, and pharmaceutical granules.

Other Industries

Hardware and electrical materials, recycling resources, military manufacturing, and plastic processing.

09e086dc8ed15fc1c77b34ec5fb350b1
📦 Applicable Material Types
Z-type bucket elevators have a wide range of applicable material types and are particularly suitable for conveying non-sticky substances, including:
Form Classification: Powders, small granules, lumps, and powder-granule mixtures (with a powder content of less than 25%).
Specific Material Examples:

Food

Potato chips, peanuts, nuts, candy, dried fruits, vegetables, frozen foods, and biscuits.

Chemical/Industrial

Activated carbon, refractory materials, bauxite, quartz sand, glass beads, plastic/rubber granules, calcium carbonate, phenolic resin, silica gel granules, asphalt granules, and ceramic granules.

Hardware

Screws, nuts, etc.

Frequently Asked Questions

Q1: What is the difference between a Z-Type Bucket Elevator and a traditional bucket elevator?

Traditional bucket elevators rely on high-speed centrifugal force to throw and discharge materials, which easily causes breakage and is mostly limited to vertical conveying. The Z-Type Elevator operates at low speeds and uses gravity-induced discharging, making it extremely gentle on materials. It also supports composite horizontal and vertical conveying with multi-point discharging capabilities.

Q2: Can the equipment achieve multi-point feeding and discharging?

Absolutely. Both the inlet and discharge points of the Z-Type Elevator can be customized according to customer needs. Through special automatic discharge devices, multiple discharge points can be set on the top horizontal section, making it perfect for distributing materials to multiple silos or combination scales.

Q3: When conveying materials with high powder content, will there be dust emission?

No. The Z-Type Bucket Elevator features a fully enclosed casing with excellent sealing performance. Additionally, we recommend using a constant-speed vibratory feeder at the inlet for flow-in feeding, which fundamentally prevents dust emission and material spillage, ensuring a clean workshop environment.

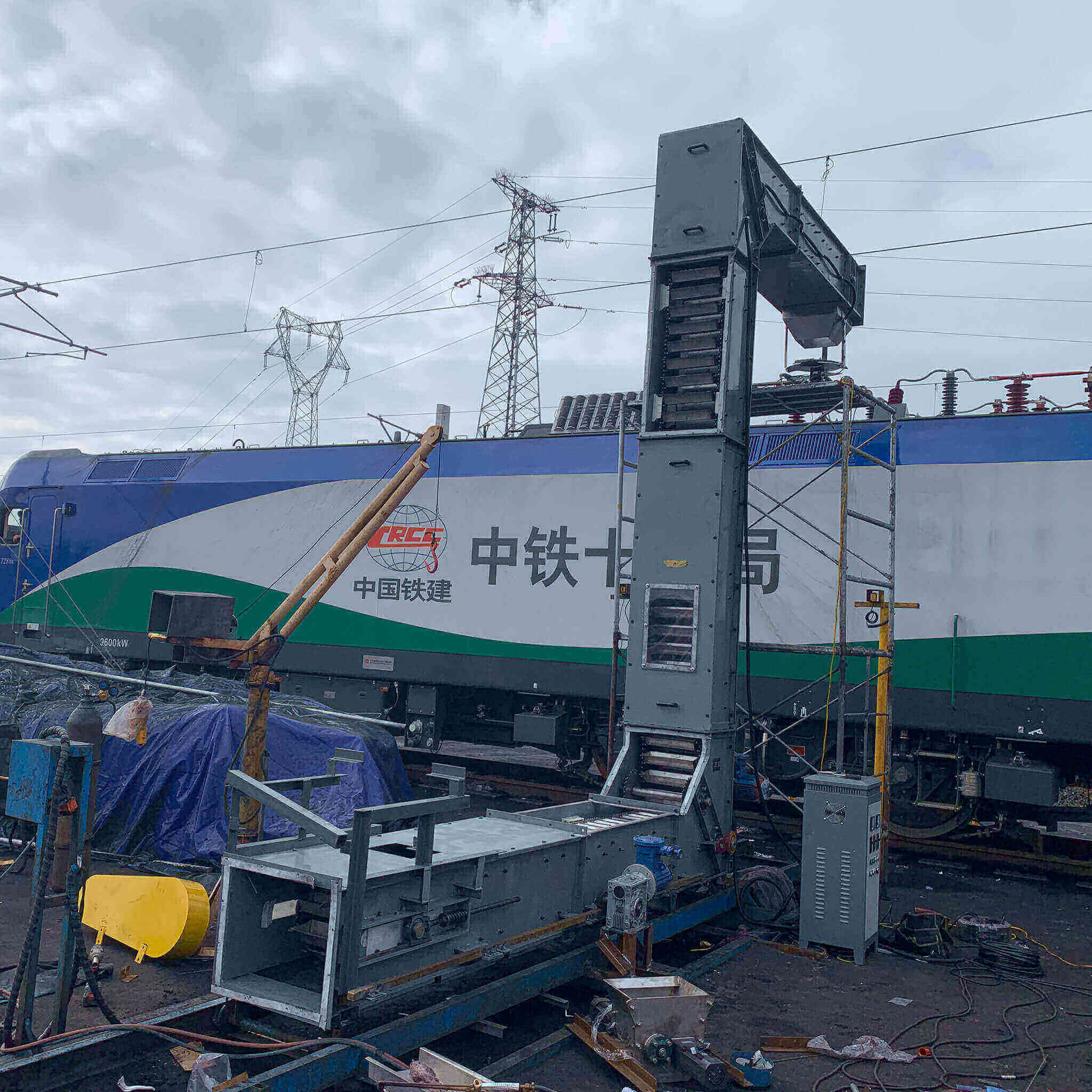

Food Grade Stainless Steel Bucket Elevator
