Working principle

Bottom Loading

Material enters through the bottom inlet. As the buckets move downward, they scoop up the material like spoons, filling each bucket.

Chain Lifting

The motor drives the head sprocket to rotate, pulling the material-filled buckets upward along the vertical casing. The chain is typically forged from alloy steel for high strength and durability.

Top Discharge

Upon reaching the top, the buckets reverse direction around the sprocket. The material is discharged through the outlet under the combined effect of centrifugal force and gravity, then falls into the next piece of equipment or storage bin.

Equipment Specifications

Model	YDZD-2L	YDZD-3L	YDZD-5L	YDZD-7L	YDZD-10L
conveying capacity （m³/h）	0-6	0-0.75	0-12	0-15	0-20
running speed （m/min）	9-11	9-11	9-11	9-11	9-11
Single bucket capacity	2L	3L	5L	7L	10L
increase height	Customize	Customize	Customize	Customize	Customize
Material of hopper	Customize	Customize	Customize	Customize	Customize

Core Advantages

Compact Structure, Space-Saving Design

The Z type bucket elevator adopts a combined conveying method of "horizontal–vertical–horizontal" with an overall Z-shaped layout. Its compact structure and small footprint help save factory floor space and reduce the complexity of production line layout.

Multiple Inlet and Outlet Points

The Z type bucket elevator can be flexibly configured with multiple inlet and outlet points according to actual production requirements. It supports various combinations, including single inlet with single outlet, single inlet with multiple outlets, multiple inlets with single outlet, and multiple inlets with multiple outlets.

Low Material Breakage Rate

Materials are gently fed into the buckets by gravity rather than being forcibly scraped, ensuring smooth and gentle operation that helps maintain the physical integrity of the materials. This makes it particularly suitable for conveying fragile or easily damaged materials such as puffed snacks, nuts, potato chips, candies, and plastic granules, contributing to improved product quality and yield rates.

Highly Customizable, Strong Adaptability

The bucket size, conveying speed, lifting height, horizontal span, inlet/outlet positions, and material of construction can all be customized according to actual working conditions.

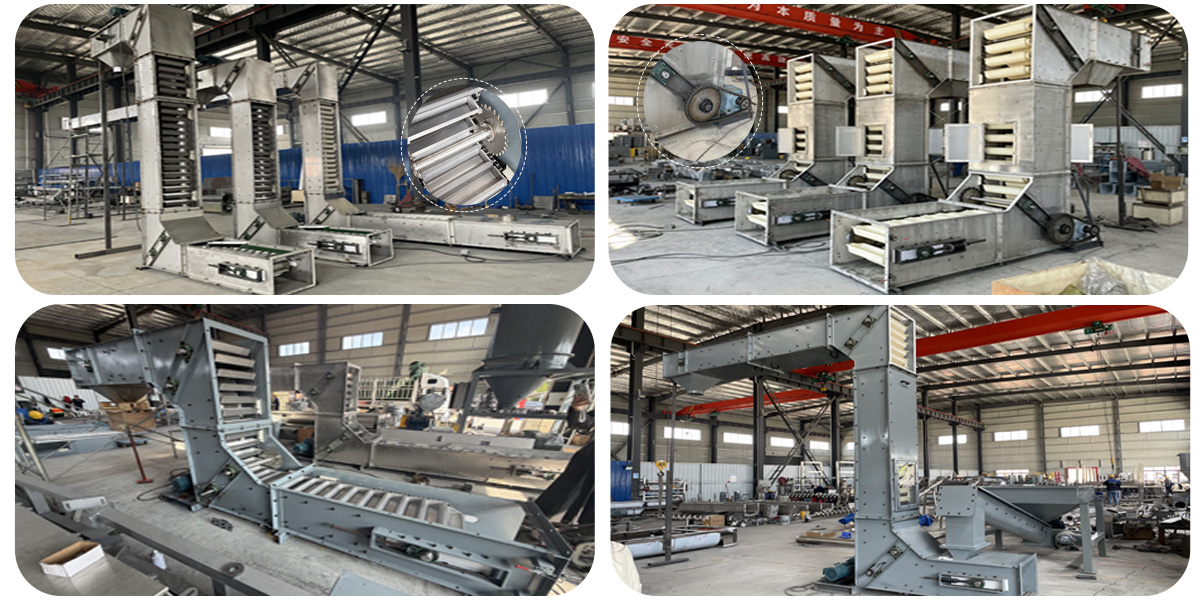

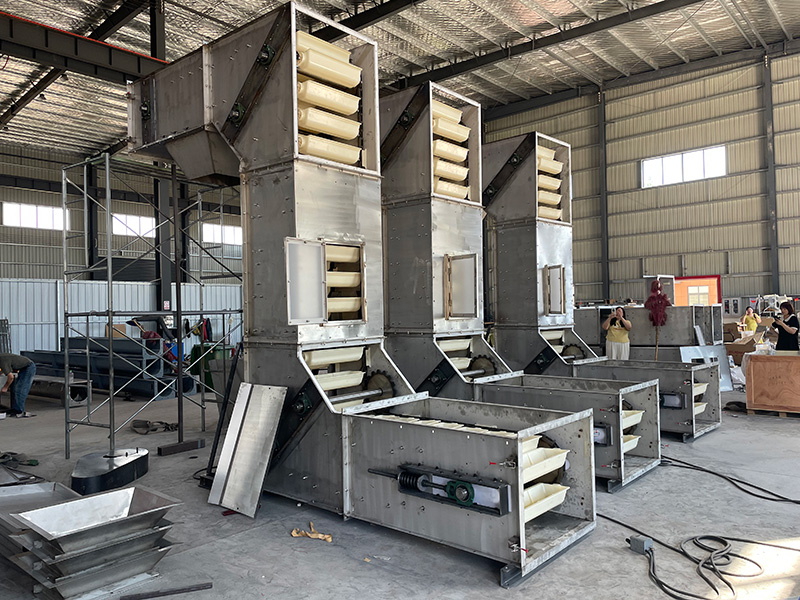

Z Type Bucket Elevator

Model style

The Z-type bucket elevator is available in various configurations. Its compact Z or C-shaped structure enables efficient vertical lifting within limited spaces, while supporting single or multiple inlet and outlet points to meet the complex layout requirements of different production lines. This design not only saves floor space but also helps reduce material breakage during transfer, making it particularly suitable for industries with high demands for material integrity. It can be customized and combined according to actual production space, material flow, and specific process requirements.

Applicable Industries

Food and Beverage Industry

Suitable materials: puffed snacks, nuts, candies, biscuits, potato chips, coffee beans, pet food (such as dog food), grains, etc.

Chemical and Plastics Industry

CSuitable materials: plastic granules, rubber granules, fertilizer, pigments, additives, resins, etc.

Pharmaceutical and Health Products Industry

Suitable materials: tablets, capsules, powder, granules, health product raw materials, etc.

Feed and Agriculture Industry

Suitable materials: compound feed, premix, seeds, grains, soybean meal, etc.

Other Light Industry and Electronics Industry

Suitable materials: glass beads, electronic components, small hardware parts, magnetic materials, etc.

Applicable Industries

Granular materials

Grains, beans, seeds, peanuts, sunflower seeds, coffee beans, plastic pellets, rubber pellets, glass beads, etc.

Powder materials

Starch, flour, rice flour, milk powder, white sugar, calcium carbonate, activated carbon, desiccant, mineral powder, medicinal powder, metallurgical powder, etc.

Lumpy materials

Candies, puffed foods, frozen foods, pet foods, snack foods, refractory materials, etc.

Applicable Material

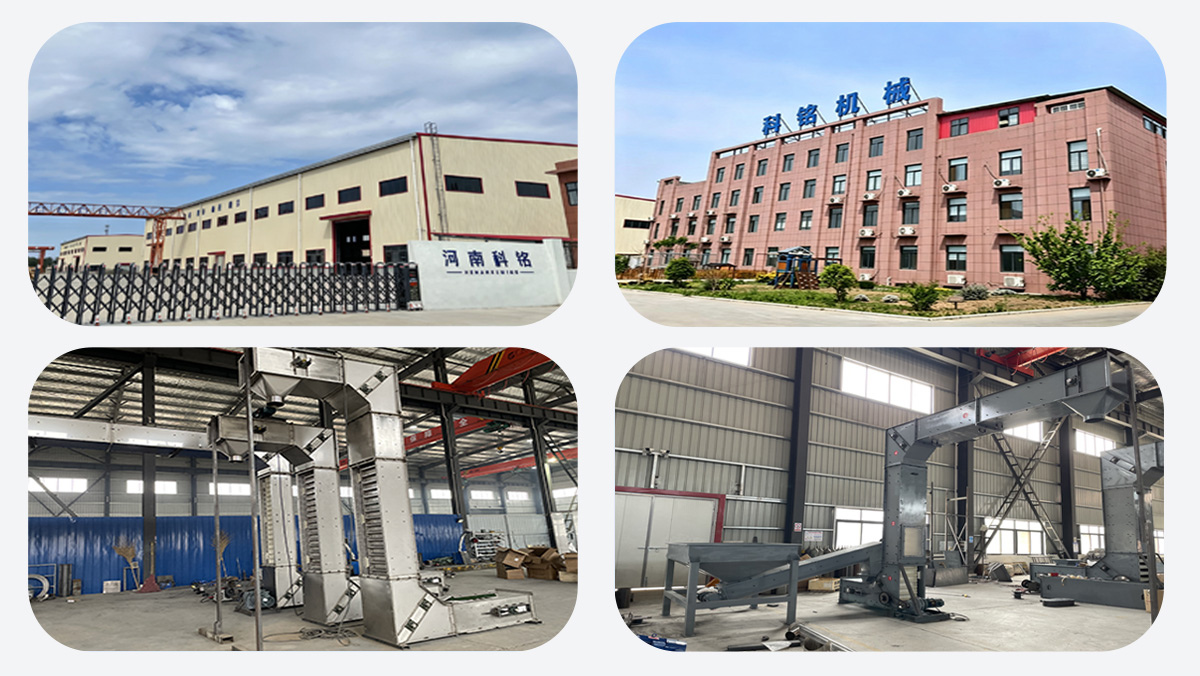

Source Factory
