Parameter

Model	KM-600	KM-800	KM-1000	KM-1200	KM-1500	KM-1800
Diameter (mm)	Φ600	Φ800	Φ1000	Φ1200	Φ1500	Φ1800
Screen Area (m²)	0.24	0.45	0.67	1.0	1.6	2.43
Mesh Size (mesh)	2-500	2-500	2-500	2-500	2-500	2-500
Feed Size (mm)	<Φ10	<Φ15	<Φ20	<Φ30	<Φ30	<Φ30
Number of Layers	1-5	1-5	1-5	1-5	1-5	1-5
Power (kW)	0.25	0.55	0.75	1.1	1.5	2.2

Advantages

High screening accuracy & wide material adaptability

Adopting three-dimensional vibration, materials move radially and angularly on the sieve surface. The screening fineness can reach 500 mesh (0.028 mm). It can handle dry powder, particles, slurry and viscous liquid.

High efficiency and large throughput

The long material movement path ensures high utilization of the sieve surface. It can perform fine screening for dry materials (0–400 mesh) and wet materials/slurries (0–600 mesh).

Fully enclosed structure for pollution prevention & environmental protection

Sealed dust-proof design effectively prevents dust emission and liquid leakage, suitable for scenarios with strict environmental requirements.

Strong customization capability

Customizable material, layer quantity and screen mesh type, base frame. Explosion-proof, ultrasonic and mobile versions are available, widely applied in chemical, lithium battery, food, pharmaceutical, metallurgy and ceramic industries.

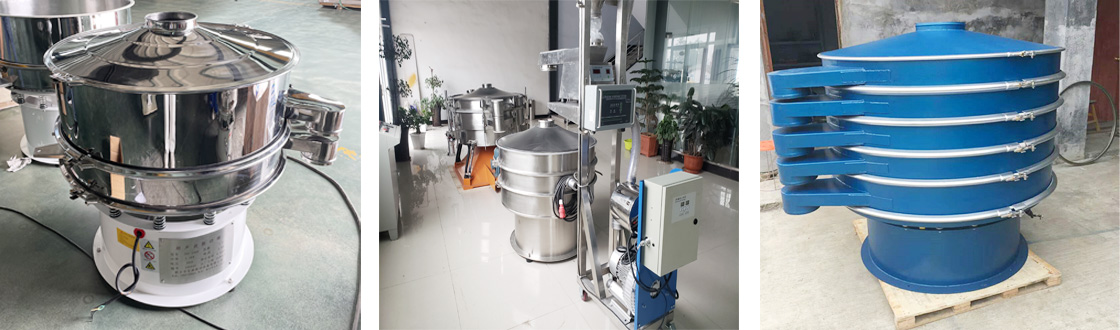

Rotary-vibrating-screen

Applicable Industries

Food Industry

Starch, flour, sugar powder, salt, milk powder, egg powder, seasonings; filtration of fruit juice, soybean milk and sauces, impurity removal and particle grading. 304 stainless steel models meet food hygiene standards.

Pharmaceutical Industry

Screening and impurity removal for herbal powder & liquid, API, pharmaceutical granules and excipients. GMP-compliant clean type available.

Chemical & New Energy Industry

Resin, pigment, coating, plastic powder, cosmetic raw materials; fine grading of lithium battery ternary materials, lithium iron phosphate and other powders. Explosion-proof version optional.

Metallurgy & Metal Powder

Classification of aluminum powder, copper powder, alloy powder, welding powder, quartz sand, refractory materials, manganese dioxide and other metallic & non-metallic powders.

Ceramic & Abrasive Industry

Dry and wet material screening & filtration for kaolin, alumina, ceramic slurry, glaze, silicon carbide.

Environmental Protection Industry

Wastewater filtration, waste oil treatment, activated carbon recovery, sludge residue removal.

Frequently Asked Questions

Q1:What materials can be processed and what is the finest screening size?

It can handle dry powder, particles, slurry and viscous liquid. Standard fineness reaches 500 mesh (0.028 mm). With ultrasonic system, finer powder can be screened. Dry materials: 0–400 mesh, wet materials/slurry: 0–600 mesh for grading, impurity removal and solid-liquid separation.

Q2: Is screen blinding common? How to solve it?

Bouncing balls are equipped for normal materials to realize self-cleaning. Ultrasonic anti-blinding system is optional for sticky, electrostatic and ultra-fine powder. The phase angle of eccentric blocks can be adjusted to optimize material trajectory.

Q3: Rotary vibrating sieve vs linear vibrating screen, how to choose?

Rotary vibrating sieve is designed for fine screening, small footprint and dust-tight structure, suitable for medium & low capacity and high-precision grading. Linear vibrating screen owns larger screen area and higher throughput for coarse materials and large output.

Q4: What material options are available? Suitable for food and pharmaceutical industry?

Carbon steel for main frame; 304 / 316 stainless steel for material contact parts with polished surface. It meets GMP requirements for food and pharmaceutical production. Explosion-proof type is available for chemical and lithium powder.

Q5: Do you support customized machines?

Customization is available. We can adjust screen size, layer quantity, voltage, dust-proof structure and mobile base according to customer site conditions and output demands.
