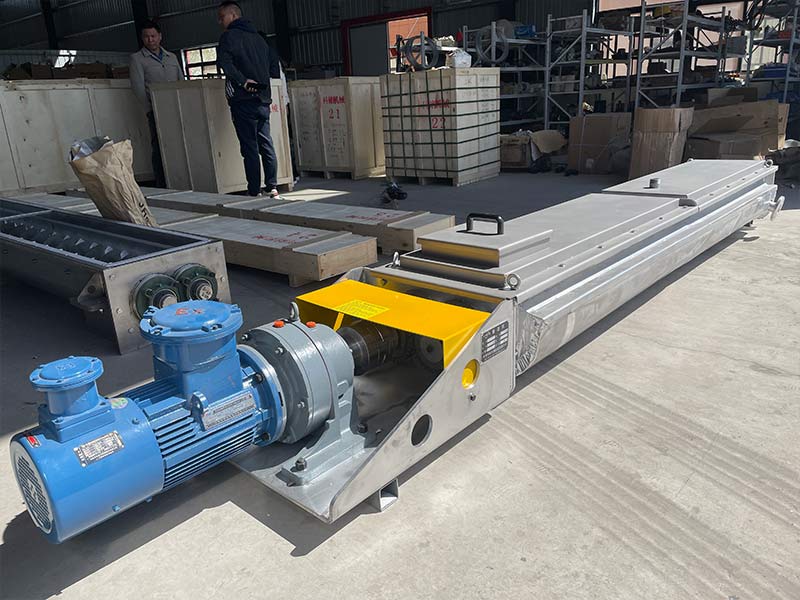

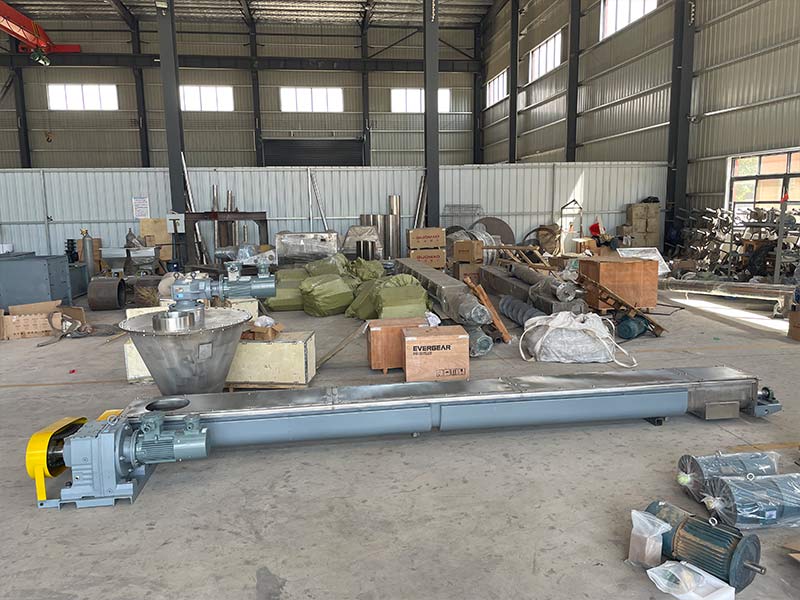

Heating Screw Conveyor-Henan Keming Machinery Equipment Co., Ltd.

Advantages

Efficient & Uniform Heat Exchange

Utilizing indirect heating via jackets or hollow shafts ensures the heating medium does not directly contact the material, maintaining product purity. The continuous tumbling action of the screw blades guarantees uniform heating, effectively preventing local overheating or caking.

Integrated Multi-Function Process

A single piece of equipment simultaneously handles conveying, mixing, heating, drying, and insulation. This simplifies production line layouts and significantly reduces investment costs associated with standalone heating silos or dryers.

Superior Anti-Stick & Anti-Blockage Performance

For high-moisture or easily adhered materials, continuous heat input effectively reduces viscosity, preventing condensation on the casing walls and screw blades. When combined with a shaftless design, it completely resolves wrapping and blockage issues with sticky hot materials.

Precise Temperature Control & Energy-Saving Design

High-quality thermal insulation layers are applied to the outer jacket to minimize heat loss. Combined with variable frequency drives (VFDs), the material residence time can be precisely controlled by adjusting the screw speed to achieve the target process temperature.

Selection Guide

Based on Process Requirements

For simple insulation or mild heating (e.g., condensation prevention), standard jacketed heating screws are suitable. For deep drying or high-temperature thermal treatment (e.g., mineral calcination over 800℃), hollow shaft electric heating (Joule effect) or double-shaft heating mixers are recommended.

Based on Material Characteristics

For free-flowing, non-sticky dry powders (e.g., cement, fly ash), select shafted tubular or U-type heating screws. For high-viscosity, easily tangled wet materials (e.g., sludge, food waste), a shaftless heating screw with anti-stick liners is highly recommended.

Heating Medium & Material Confirmation

Determine the heating method based on on-site heat source availability (steam, thermal oil, or electricity). The inner tube and screw body should be selected in carbon steel or 304/316L stainless steel based on the material's corrosiveness.

Installation & Maintenance

Installation Standards

The equipment must be installed smoothly on a solid foundation. High-temperature gaskets must be used at heating medium inlet/outlet connections, followed by strict pressure testing to ensure no leakage. The external insulation layer must be tightly wrapped.

Daily Maintenance

The heating medium must be supplied for preheating before startup; cold-starting under full load is strictly prohibited. Regularly inspect the wear of rotary joints and seals to prevent heating medium leakage. Before shutdown, stop feeding first, and only turn off the heat source after the materials are completely discharged.

Fault Prevention

If the discharge temperature fails to meet standards, check the heating medium flow, temperature, and pipe scaling. In case of blockage, clear the materials through the cleaning door; never force a reverse run or restart under load to avoid damaging the reducer or screw blades.

Frequently Asked Questions

Q1: What heating methods are available for heating screw conveyors? Which is better?

Common methods include jacketed thermal oil/steam heating, hollow shaft heating, and electric heating (Joule effect). Thermal oil and steam provide stable temperature control, suitable for medium-to-low temperatures (≤200℃) for insulation and drying. Electric heating (Joule effect) uses the screw shaft itself as a conductor, offering extremely high thermal efficiency and zero emissions, making it ideal for severe thermal treatment conditions up to 800℃.

Q2: When conveying sticky materials, will heating cause the material to stick and rotate with the screw?

Heating can indeed alter the rheological properties of certain materials. To prevent adhesion, we recommend installing high-polymer wear-resistant anti-stick liners at the bottom of the trough. For extremely sticky hot materials prone to wrapping, a shaftless heating screw is the optimal solution, as its shaftless design completely eliminates wrapping issues.

Q3: Is the heat loss of the equipment significant? How is energy efficiency ensured?

Our heating screw conveyors are equipped with high-efficiency thermal insulation layers (e.g., aluminum silicate fiber felt) on the outer jacket to minimize heat loss. Additionally, VFDs precisely control material residence time, preventing energy waste from overheating, perfectly combining process efficiency with energy conservation.
